TrueK8S Part 07

Deploying LongHorn to our Kubernetes cluster

I learned a hard lesson about making good choices regarding storage for your kubernetes cluster. In early attempts at building my cluster I tried using an ‘nfs-subdir’ provider that provided pod volume storage backed by a local NFS server. This seemed easy and made good sense to me at the time. In practice, the I/O was so bad that many deployments failed due to enormous storage latency. Not only did it perform poorly, that storage provider also didn’t provide the snapshot mechanism that we’ll need for VolSync (up next). So take it from me, you need a good storage provider that provides features, flexibility, and good performance.

I chose longhorn as the storage provider for my cluster, mainly because there were plenty of examples around longhorn configuration in the TrueCharts community for me to follow. Longhorn allows us to utilize direct attached storage on our worker nodes for high performance, and also provides the volume snapshot features that we’ll need in the next post. You may remember back in part 1 of this guide, I referenced storage for our cluster members and some necessary extensions for TalosOS. If you skipped around, go back to part 1 and make sure that you have the util-linux-tools and iscsi-tools extensions configured.

Deploying LongHorn

You should know the drill by now. Here are the deployment resources. Once again we’ll create a kustomization to deploy longhorn, and then a separate one to configure it. I chose to do it this way because I want to explicitly wait for the longhorn UI to be online before trying to assign ingress to it, which can cause issues in re-deployment scenarios.

truek8s
├── infrastructure
│ ├── core
│ │ ├── longhorn
│ │ │ ├── helm-release.yaml
│ │ │ ├── kustomization.yaml
│ │ │ ├── namespace.yaml
│ │ ├── longhorn-config
│ │   ├── ingress.yaml
│ │   └── kustomization.yaml
│ └── production
│     └── longhorn.yaml
└── repos
    ├── longhorn.yaml
    └── longhorn-config.yaml

./repos

longhorn.yaml

---
apiVersion: source.toolkit.fluxcd.io/v1
kind: HelmRepository
metadata:
  name: longhorn
  namespace: flux-system
spec:
  interval: 2h
  url: https://charts.longhorn.io

kustomization.yaml

Add this new manifest to the repos kustomization.

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - longhorn.yaml

./infrastructure/core/longhorn

namespace.yaml

apiVersion: v1
kind: Namespace
metadata:
    name: longhorn-system
    labels:
        pod-security.kubernetes.io/enforce: privileged

helm-release.yaml

apiVersion: helm.toolkit.fluxcd.io/v2
kind: HelmRelease
metadata:
    name: longhorn
    namespace: longhorn-system
spec:
    interval: 5m
    releaseName: longhorn
    chart:
        spec:
            chart: longhorn
            sourceRef:
                kind: HelmRepository
                name: longhorn
                namespace: flux-system
    install:
        createNamespace: true
        crds: CreateReplace
        remediation:
            retries: 3
    upgrade:
        crds: CreateReplace
        remediation:
            retries: 3
    values:
        defaultSettings:
            # Increase to 3 for a multi-node cluster
            defaultReplicaCount: 1
            # Overprovisioning might be needed when using volsync
            storageOverProvisioningPercentage: 100000
            storageReservedPercentageForDefaultDisk: 10
            # v2DataEngine: true
        csi:
            attacherReplicaCount: 1
            provisionerReplicaCount: 1
            resizerReplicaCount: 1
            snapshotterReplicaCount: 1
        persistence:
            # Set to false to pick another CSI as default
            defaultClass: true
            # Increase to 3 for a multi-node cluster
            defaultClassReplicaCount: 1
        longhornUI:
            replicas: 1

./infrastructure/core/longhorn-config

ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: longhorn-nginx
  namespace: longhorn-system
spec:
  ingressClassName: internal
  rules:
  - host: longhorn.${DOMAIN_0}
    http:
      paths:
      - backend:
          service:
            name: longhorn-frontend
            port:
              number: 80
        path: /
        pathType: Prefix

• kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - ingress.yaml

./infrastructure/production

The order of operations here is to first install longhorn, then use separate kustomization to configure the ingress once longhorn and nginx are both configured.

/infrastructure/production/longhorn.yaml

apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: longhorn
  namespace: flux-system
spec:
  interval: 10m
  path: infrastructure/core/longhorn
  prune: true
  sourceRef:
    kind: GitRepository
    name: flux-system

/infrastructure/production/longhorn-config.yaml

Note the dependsOn configuration of this kustomization.

apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: longhorn-config
  namespace: flux-system
spec:
  dependsOn:
    - name: ingress-nginx
    - name: longhorn
  interval: 10m
  path: infrastructure/core/longhorn-config
  prune: true
  sourceRef:
    kind: GitRepository
    name: flux-system

/infrastructure/production/kustomization.yaml

And add these new manifests to the production kustomization

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - longhorn.yaml
  - longhorn-config.yaml

Finally, commit your changes and watch flux as it reconciles the changes.

git add -A && git commit -m "add longhorn"
git push

flux events --watch

Verify longhorn

Check everything over using flux, helm, and kubectl like we did in previous steps. You should see quite a few resources created by the longhorn helm-release. You can inspect those with kubectl to understand what all it’s doing. You should also have new storage classes created by longhorn.

$ flux get hr longhorn -n longhorn-system
NAME            REVISION        SUSPENDED       READY   MESSAGE
longhorn        1.9.0           False           True    Helm install succeeded for release longhorn-system/longhorn.v1 with chart longhorn@1.9.0

$ flux tree ks longhorn
Kustomization/flux-system/longhorn
├── Namespace/longhorn-system
└── HelmRelease/longhorn-system/longhorn
    ├── PriorityClass/longhorn-critical
    ├── ServiceAccount/longhorn-system/longhorn-service-account
    ├── ServiceAccount/longhorn-system/longhorn-ui-service-account
    ├── ServiceAccount/longhorn-system/longhorn-support-bundle
    ├── ConfigMap/longhorn-system/longhorn-default-resource
    ├── ConfigMap/longhorn-system/longhorn-default-setting
    ├── ConfigMap/longhorn-system/longhorn-storageclass
    ├── CustomResourceDefinition/backingimagedatasources.longhorn.io
    ├── CustomResourceDefinition/backingimagemanagers.longhorn.io
    ├── CustomResourceDefinition/backingimages.longhorn.io
    ├── CustomResourceDefinition/backupbackingimages.longhorn.io
    ├── CustomResourceDefinition/backups.longhorn.io
    ├── CustomResourceDefinition/backuptargets.longhorn.io
    ├── CustomResourceDefinition/backupvolumes.longhorn.io
    ├── CustomResourceDefinition/engineimages.longhorn.io
    ├── CustomResourceDefinition/engines.longhorn.io
    ├── CustomResourceDefinition/instancemanagers.longhorn.io
    ├── CustomResourceDefinition/nodes.longhorn.io
    ├── CustomResourceDefinition/orphans.longhorn.io
    ├── CustomResourceDefinition/recurringjobs.longhorn.io
    ├── CustomResourceDefinition/replicas.longhorn.io
    ├── CustomResourceDefinition/settings.longhorn.io
    ├── CustomResourceDefinition/sharemanagers.longhorn.io
    ├── CustomResourceDefinition/snapshots.longhorn.io
    ├── CustomResourceDefinition/supportbundles.longhorn.io
    ├── CustomResourceDefinition/systembackups.longhorn.io
    ├── CustomResourceDefinition/systemrestores.longhorn.io
    ├── CustomResourceDefinition/volumeattachments.longhorn.io
    ├── CustomResourceDefinition/volumes.longhorn.io
    ├── ClusterRole/longhorn-role
    ├── ClusterRoleBinding/longhorn-bind
    ├── ClusterRoleBinding/longhorn-support-bundle
    ├── Service/longhorn-system/longhorn-backend
    ├── Service/longhorn-system/longhorn-frontend
    ├── Service/longhorn-system/longhorn-conversion-webhook
    ├── Service/longhorn-system/longhorn-admission-webhook
    ├── Service/longhorn-system/longhorn-recovery-backend
    ├── DaemonSet/longhorn-system/longhorn-manager
    ├── Deployment/longhorn-system/longhorn-driver-deployer
    └── Deployment/longhorn-system/longhorn-ui

$ flux tree ks longhorn-config
Kustomization/flux-system/longhorn-config
└── Ingress/longhorn-system/longhorn-nginx

$ kubectl get storageclasses.storage.k8s.io
NAME                 PROVISIONER          RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGE
longhorn (default)   driver.longhorn.io   Delete          Immediate           true                   2d9h
longhorn-static      driver.longhorn.io   Delete          Immediate           true                   2d9h

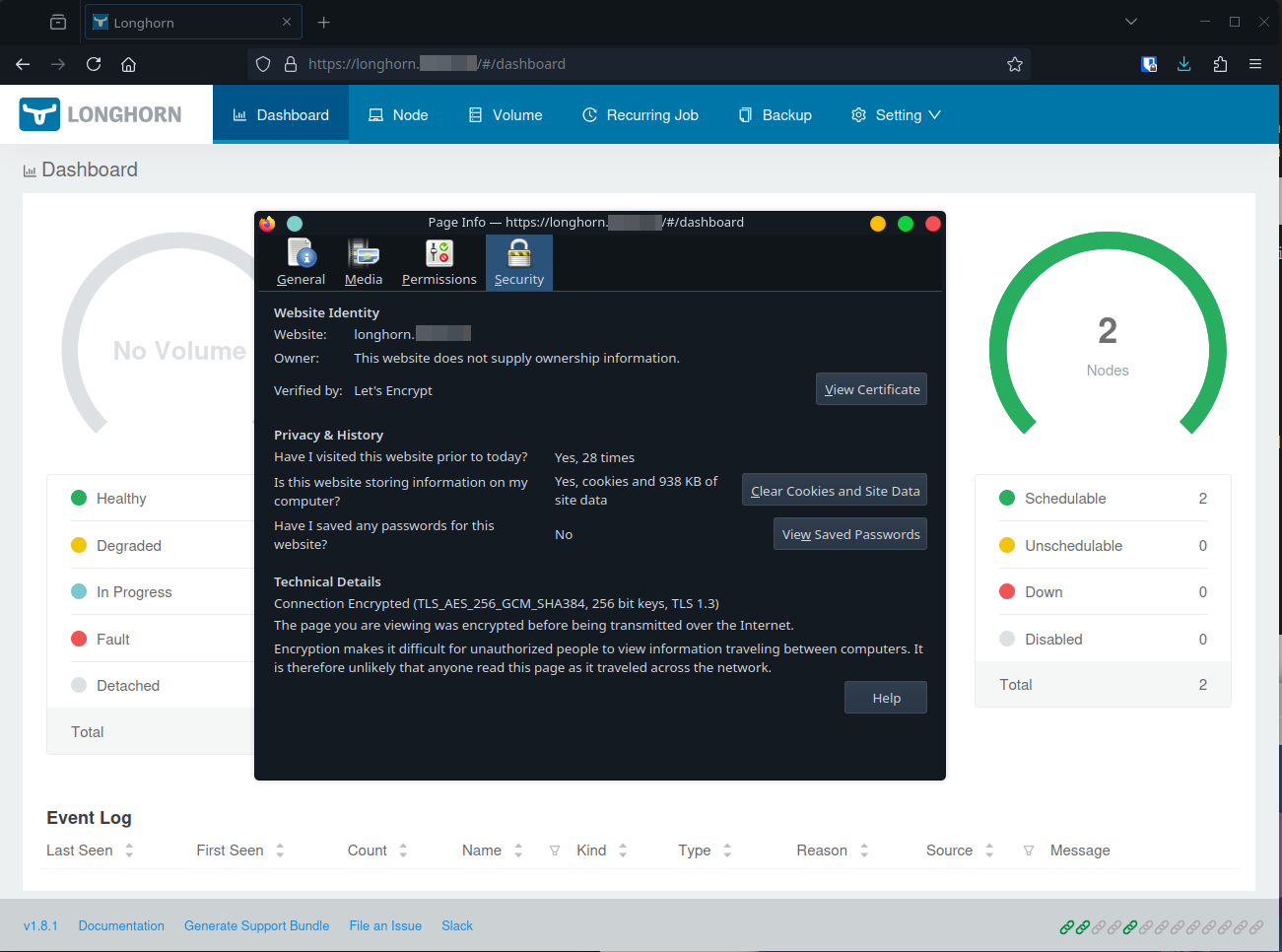

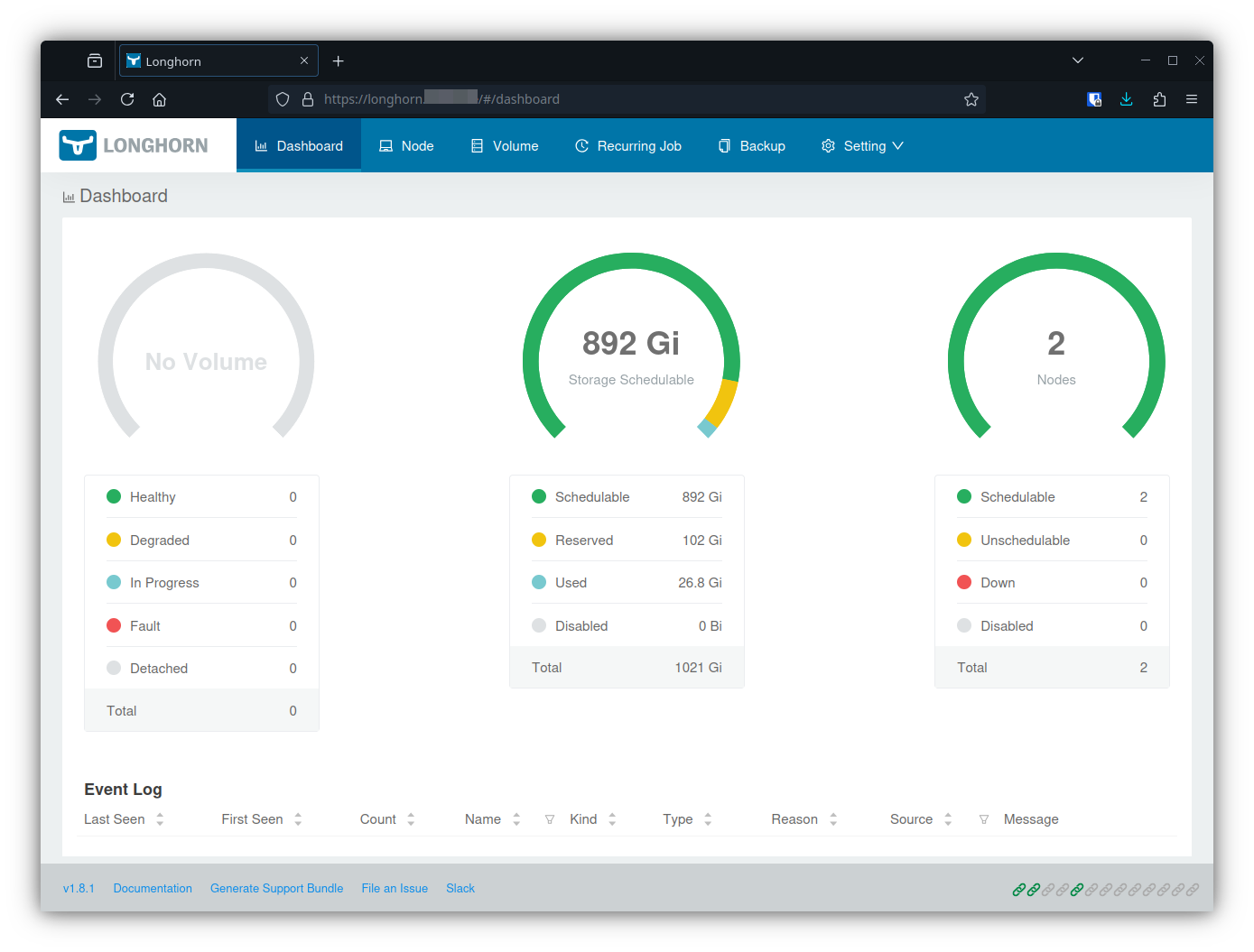

If everything goes well, you should be able to reach the longhorn webui at longhorn.yourdomain.tld, and it should even be served using it’s own LE certificate.
